Shanghai Magcach Technology Co.Ltd

Contact Now

LS560 360°Horizontal & 4 Vertical Lines Rotary Laser （1H*360°-4V）

Name: LS560 360Horizontal amp 4 Vertical Lines Rotary Laser 1H3604V
Brand: Laisai
Price: 1 USD

Buy cheap LS560 360°Horizontal & 4 Vertical Lines Rotary Laser （1H*360°-4V） product

Brand Name : Laisai

Model Number : LS560

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pc per year

Delivery Time : 3.-5 work days after the goods are paid

Packaging Details : with standard packing way

Laser Line : 360° rotary laser and 4 vertical laser lines

Closs Line : Form front, back, left, right and up 5 cross lines and plumb down laser dot

Warning : Laser flash and audible warning when beyond leveling range

Adjustable : Adjustable in direction and angle of area scanning

Adjustable Speed : Adjustable laser rotation speed

Calibration : Accuracy self-calibration

Contact Now

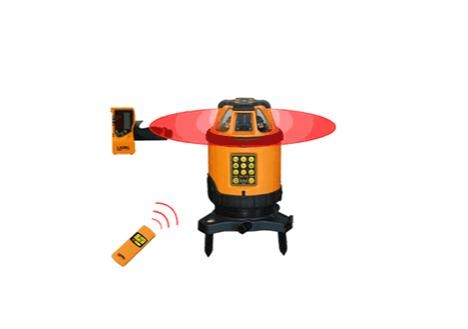

LS560 **360°Horizontal & 4 Vertical Lines Rotary Laser (1H*360°-4V)**

LS560 360°Horizontal & 4 Vertical Lines Rotary Laser （1H*360°-4V）

FEATURES

360° rotary laser and 4 vertical laser lines
Form front, back, left, right and up 5 cross lines and plumb down laser dot
Electronic leveling
Laser flash and audible warning when beyond leveling range
Adjustable in direction and angle of area scanning
Adjustable laser rotation speed
Accuracy Self-Calibration

APPLICATIONS

Best application:

Suitable application:

TECHNICAL DATA

Diode

Red

Laser wavelength

635nm

Leveling method

Automatic leveling

Working range

600m

Accuracy

±0.1mm/m

Area shielding function

Dual axis slope scaning function

Area scaning and angle adjustable function

Unbalanced warning

VWS function

Area shielding function

Sleep function

Long distance tracking function

Up plumb dot

Forced rotation mode

Two-way wireless communication function

Output Lines

Self-leveling range

±5°

IP class

IP54

Weight

2.5Kg

Size

182×190×277mm

Power supply

NI-MH battery or 4*C battery
