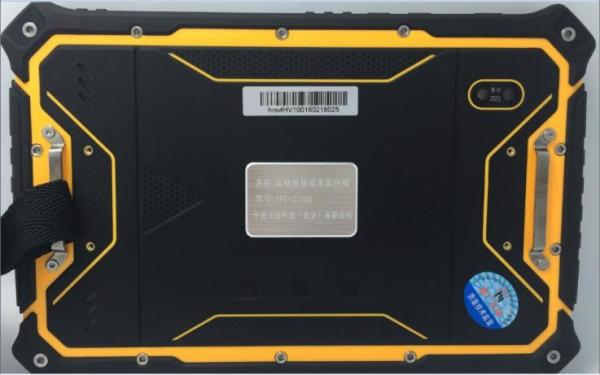

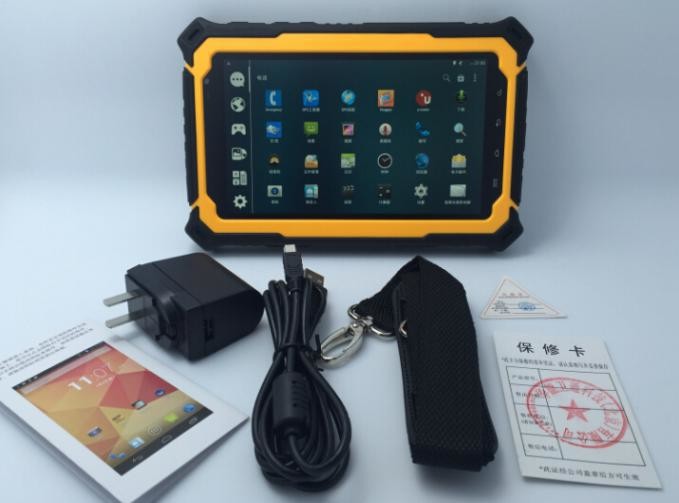

The HV-T700 is a GPS GLONASS dual-system sub-meter industrial panel with a 7-inch fully hardened capacitive touch screen. The industrial three defense class of the IP67, visible in outdoor sunlight, conforms to the military protection class, resists the drop of 1.8 meters at any angle, and has a four-core processor. Built-in WiFi, Bluetooth, gyroscope and other modules, using the most advanced process structure design, the fuselage lightweight, easy to carry, durable, built-in 11000 Ma high capacity battery, to ensure a long time field work.
Product Features :
Loading TMAPPER mobile GIS data acquisition system, using online and offline working mode, remote sensing image map, easy sampling points, measuring area and other field
measurement work, and can load various vector format maps.
GPS accuracy: sub-meter accuracy.
Can accept GPS, GLONASS, Galilo and QZSS and other systems. Support A-GPS wide area differential signal: support
MSAS, SBAS / WAASA EGNOS.
SIM card interface: support, general 1.8 / 3.3 V SIM card. 2G:850/900/1800/1900MHZ.
3G: 850/2100MHZ , 850/1900MHZ , 900/1900MHZ. WIFI:802.11B/G/N direct connection. Bluetooth:BT4.0 (A2DP+EDR).
Charging / data interface: USB Micro 5 Pin.
Post-8 million pixels auto-focus preposition 5 million
pixels.
- Data post-processing function:
Domestic data post-processing software supports the import and export of various data formats (excel / KMLT / TXT), and also supports the import and export of data from many GPS brands such as Jiaming, Magellan ZYSTAR and so on. It has the functions of field drawing and printing.
Built-in compass, gyroscope, gravity sensor, motion, gravity, geomagnetic sensor.
Detailed technical specifications of HV-T700:
| | | Processor | | | 1.5GHz eight-core processor | |
| | | | | | |
| | | Operating | system | Android 4.4.2 | |
| | | (OS) | | | |
| | | | | | |
| | | Memory capacity | | 3G RAM + 32G ROM | |
| | | | | | | |
| | | Memory card | | | Built-in TF card interface, maximum support for 64GB extension | |
| | | | | | IP67, fall protection conforms to MIL-STD-810G / R 516.6% Procedure IV | |
| | | Three defense grade | | military protection grade, up to 1.8m drop at any angle above 2 tons static | |
| | | | | | pressure test | |
| | Basic | | | | | |
| | RFID | | | Optional | |
| | characteri | | | |
| | Fingerprint | scan | / | | |
| | stics | | |
| | one-dimensional | | Optional | |
| | | | |
| | | code scan | | | | |
| | | | | | | |
| | | Size (mm) | | | 204*136*21mm(L×W×H) | |
| | | Weight (g) | | | 650g | |
| | | | | | |
| | | Working temperature | | -30°C - 65°C | |
| | | Storage temperature | | -40°C - 80°C | |
| | | | | | |
| | | Relative humidity | | 5% to 95% in non-condensed state | |
| | | Operational altitude | | Maximum working height: 4500m (15000 ft) | |
| | Display | Display screen | | 7.0 "IPS / AFFS full viewing angle" 1, 000 lumens visible in the sun | |
| | characteri | Touch screen | | Surface hardness of fully hardened capacitive touch screen greater than 8H | |
| | stic | | | | |
| | Resolution ratio | | 1024*600 | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
Supports more than 100 languages including Chinese, English, Spain, Russia,Portugal, etc
