Ultrasonic Thickness Gauge Lee342

Name: Ultrasonic Thickness Gauge Lee342
Brand: Magcach
Price: 1 USD

Buy cheap Ultrasonic Thickness Gauge Lee342 product

Brand Name : Magcach

Model Number : Ultrasonic Thickness Gauge Lee342

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200000 per year

Delivery Time : 3-5work days

Packaging Details : With Standard Export Shipping Way

Name : Ultrasonic Thickness Gauge Lee342

Contact Now

Ultrasonic Thickness Gauge Lee342

Ultrasonic Thickness Gauge Lee342

Functions & Features

●High stability and precision.

●Available software for PC connection, data transmission & analysis, and printing measurement reports.

●With built-in thermal printer.

●Rechargeable Li-ion battery, available for 10 hours working continuously.

●Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.

Measuring Materials

● Adapted to all kinds of materials( with or without coating surface), which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.

Technical Parameters

Model	Leeb342
Measuring range(mm)	0.7~300
Resolution(mm)	0.01
Accuracy(mm)	±(0.5%H+0.01) H refers to the thickness of testing piece
Velocity range(m/s)	1000～9999m/s
Storage	2000 groups
Printer	Build-in High-speed Thermal Printer, Width of printer paper:56.5±0.5mm
Dampness	20%~90%
Operating temperature	(-10°C~60°C)
Power supply	Rechargeable build-in Li-ion battery
Dimensions	230×86×46mm
Weight	400g

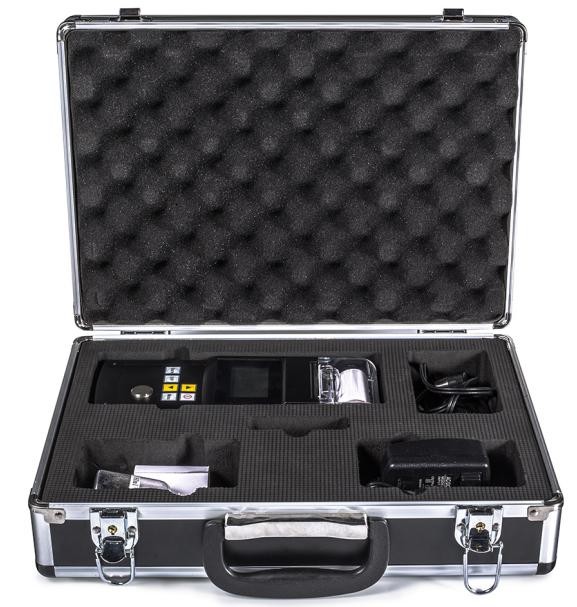

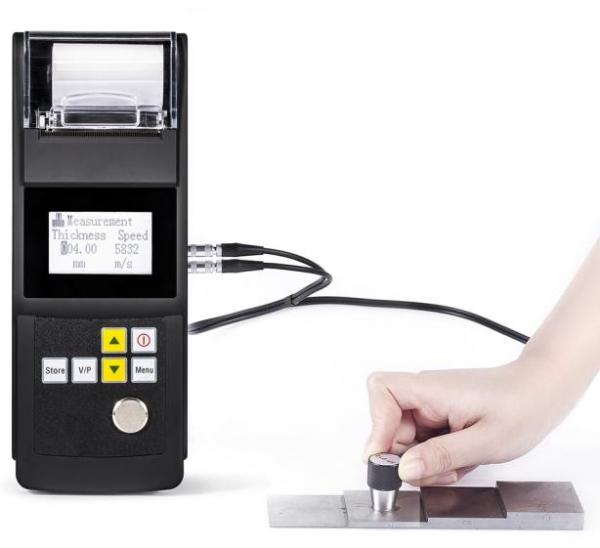

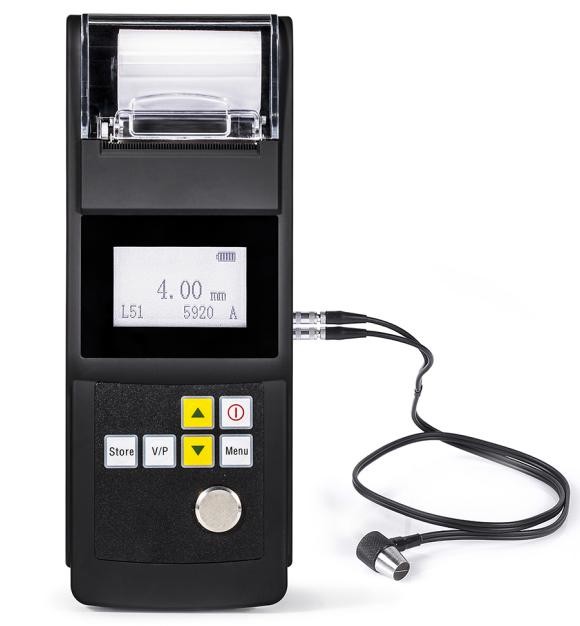

Ultrasonic Thickness Gauge Lee342 Images
